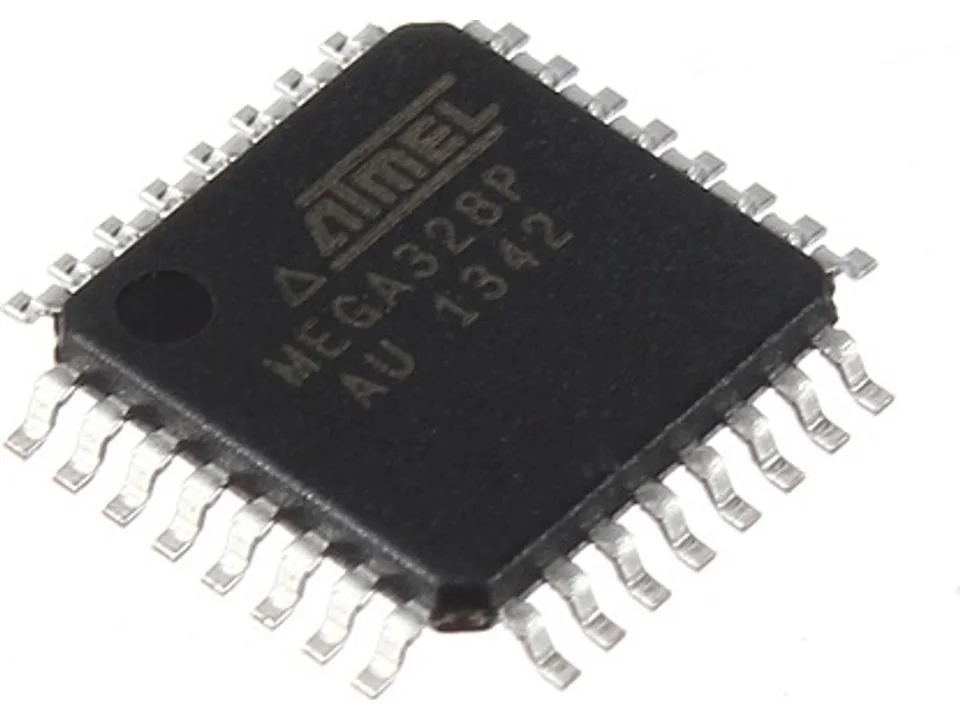

Microchip ATmega328P-AU AVR Microcontroller, TQFP-32

1,500 ֏

ATmega328P-AU is the 32-pin TQFP surface-mount variant of Microchip’s 8-bit AVR microcontroller, widely used in embedded control and Arduino-derived designs. It provides 32 KB ISP Flash, 2 KB SRAM, 1 KB EEPROM and 23 programmable I/O lines, with timers, PWM, USART, SPI, TWI/I2C and up to eight 10-bit ADC channels in this package. It runs at up to 20 MHz within the device voltage/frequency limits and operates from 1.8 to 5.5 V. This is the bare IC, not an Arduino board; a bootloader is not assumed. Microchip marks ATmega328P as not recommended for new designs, so check lifecycle needs before choosing it for a new product.

Specifications

8-bit AVR · up to 20 MHz · 32 KB Flash · 2 KB SRAM · 1 KB EEPROM · 23 GPIO · 32-pin TQFP

Core

8-bit AVR

Clock

Up to 20 MHz

Flash

32 KB

SRAM

2 KB

EEPROM

1 KB

GPIO

23

ADC

6-channel 10-bit (8 channels in TQFP/QFN variants)

Interfaces

USART, SPI, TWI/I2C

Supply

1.8–5.5 V; speed depends on voltage

Package

TQFP-32

Mounting

SMD

Lifecycle

Not recommended for new designs per manufacturer

AVR ISP programmer and AVR-GCC / Microchip Studio. Bare IC requires external clock/reset and support circuitry as needed; verify supply-frequency limits. No bootloader assumed.

One ATmega328P-AU bare IC in TQFP-32. Bootloader, PCB and support components are not included unless stated by the seller.

In stock
