Murata 100 nF ceramic capacitor · 0805

1,250 AMD

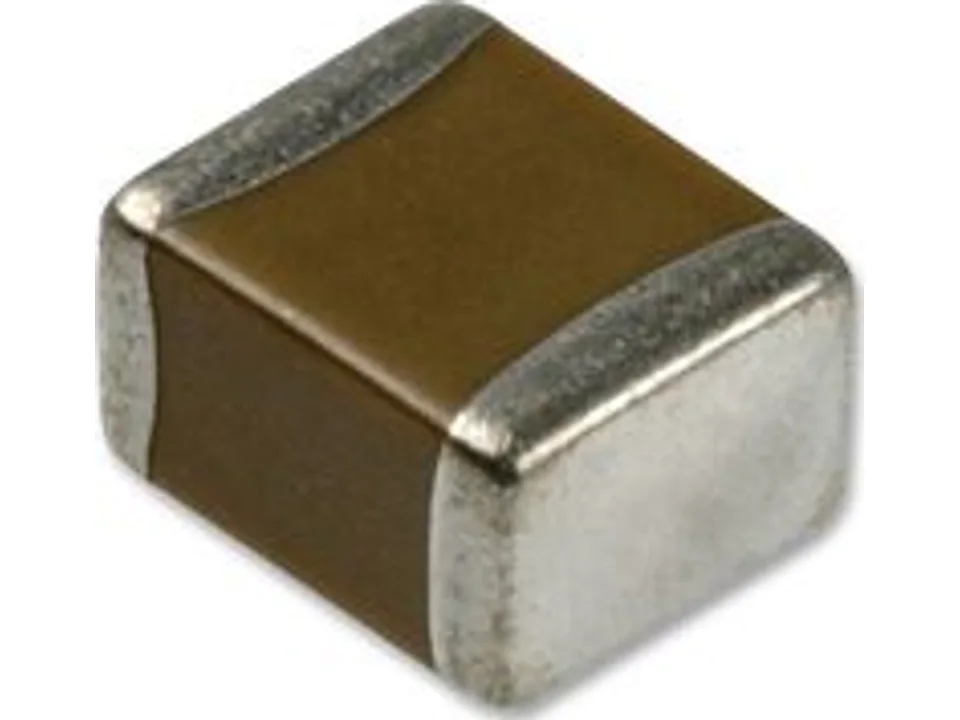

A general-purpose multilayer ceramic capacitor for local IC decoupling, high-frequency bypassing, and signal coupling where a non-polarized capacitor is appropriate. This Murata GRM part is 100 nF, X7R dielectric, 50 V rated, and ±10% tolerance. Its 0805 (2012 metric) body measures 2.0 × 1.25 mm nominally. The package image is an unmarked illustration, not a photograph of the exact capacitor. X7R capacitance changes with temperature and applied DC bias; allow margin and check the manufacturer data for the operating point.

Specifications

100 nF · 50 V · X7R · ±10% · 0805 / 2012 metric

Capacitance

100 nF

Rated voltage

50 V DC

Dielectric

X7R (EIA)

Tolerance

±10%

Package / footprint

0805 / 2012 metric

Dimensions

2.0 × 1.25 mm nominal

Image note

Distributor product photo; individual body markings may vary by production lot.

In stock
