Nexperia BC847A NPN transistor · SOT-23

1,200 AMD

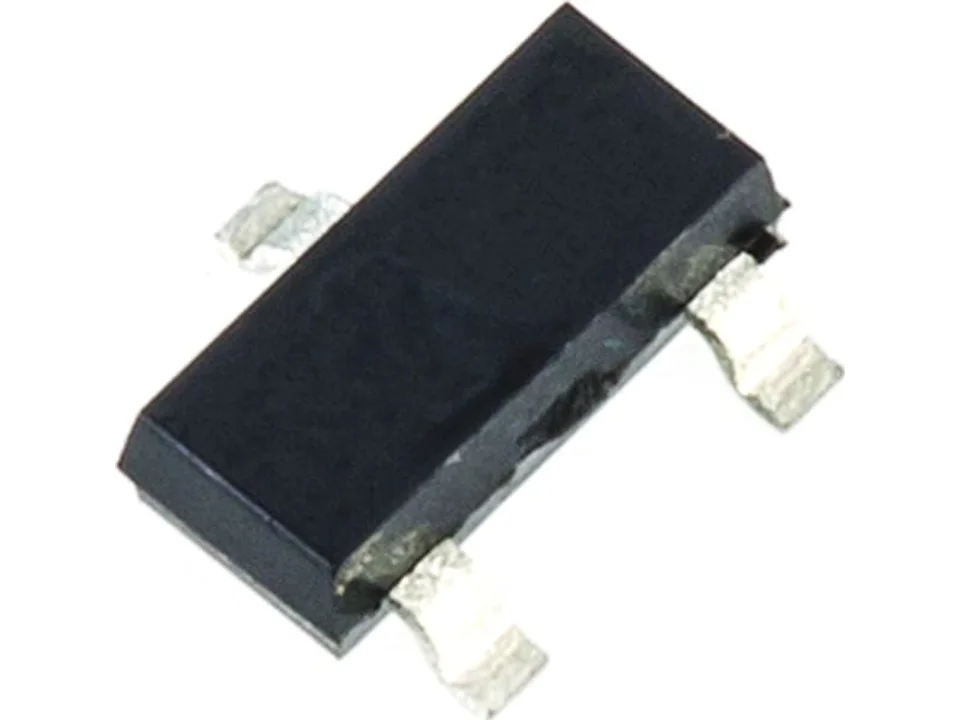

A general-purpose small-signal NPN transistor for low-current switching, inverter stages, and simple signal amplification. The BC847A is rated for 45 V collector-emitter voltage and 100 mA collector current, with the A gain group; it is supplied here as the active BC847A,215 orderable variant in a three-lead SOT-23 (TO-236AB) package. Confirm pin assignment from the Nexperia datasheet before routing: similarly named transistor families can use different lead configurations. The picture is a generic unmarked SOT-23 package illustration, not a photo of this exact device.

Specifications

NPN · 45 V · 100 mA · active order code BC847A,215 · SOT-23

Polarity

NPN

VCEO

45 V maximum

Collector current

100 mA maximum

Package

SOT-23 / TO-236AB

Leads

3

Package body

2.9 × 1.3 × 1.0 mm

Orderable code

BC847A,215

PCB footprint

SOT-23; verify pin numbering against datasheet

Image note

Distributor product photo; individual body markings may vary by production lot.

In stock
