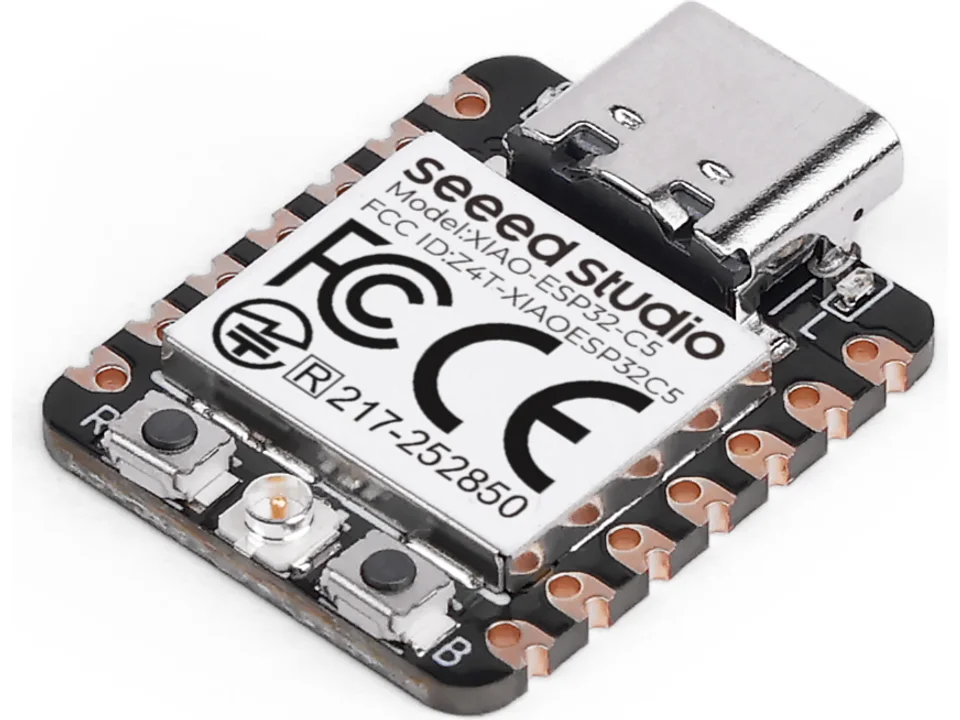

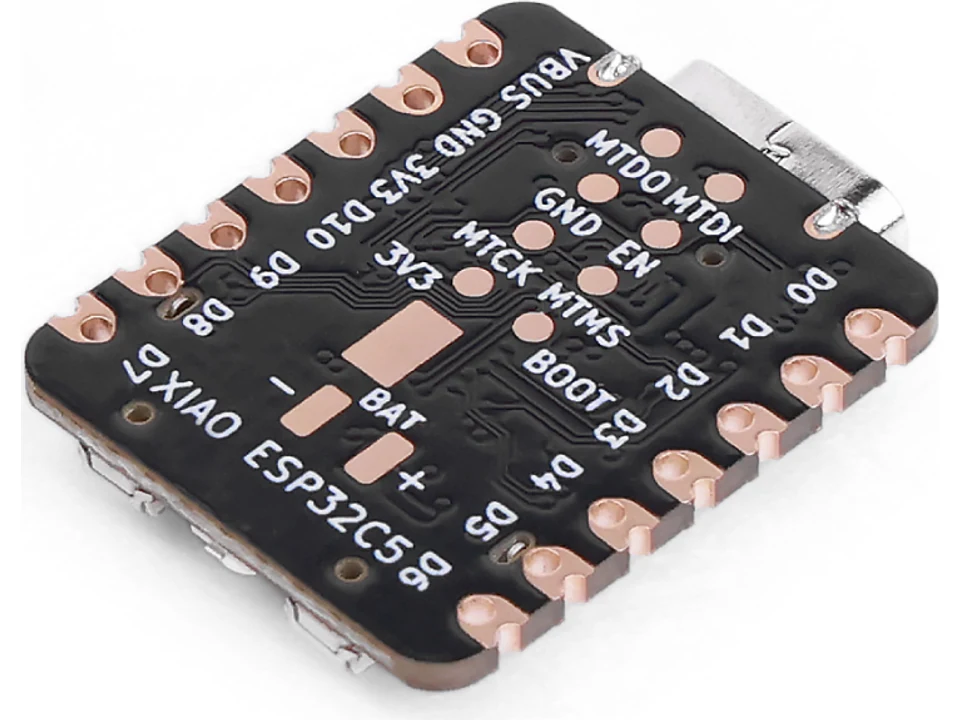

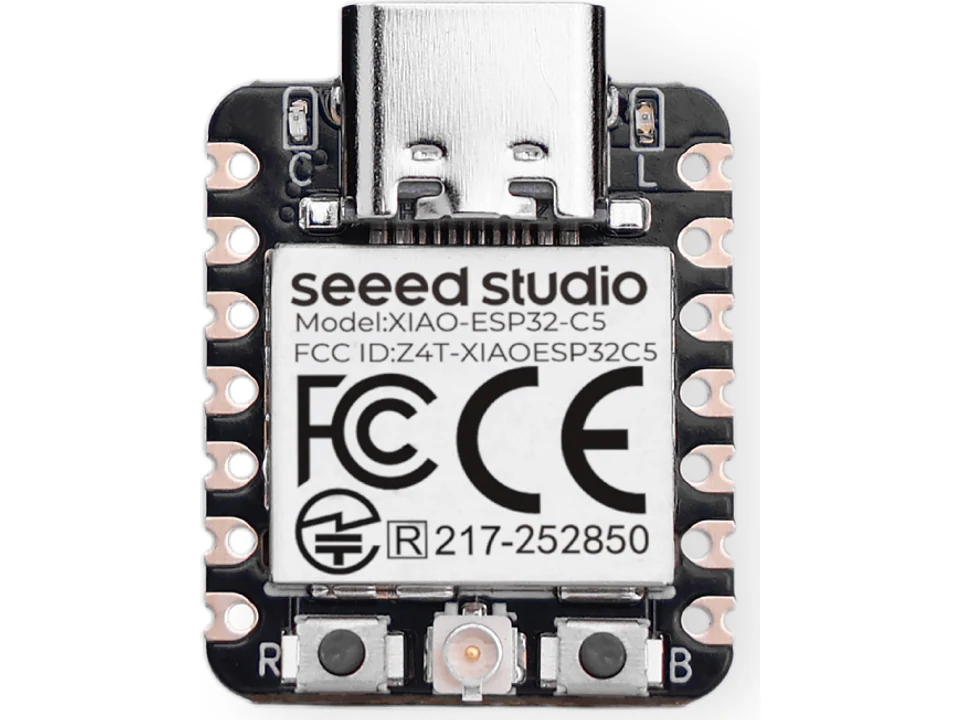

Seeed Studio XIAO ESP32-C5

Price on request

XIAO ESP32-C5 is a compact RISC-V development board built for connected products that benefit from dual-band Wi-Fi 6. The single-core ESP32-C5 runs at up to 240 MHz and combines 384 KB SRAM, 320 KB ROM, 8 MB PSRAM and 8 MB flash. Its radio supports 2.4 GHz and 5 GHz Wi-Fi 6 as well as Bluetooth LE 5, giving designers options for network access and nearby device links. The XIAO layout exposes 11 GPIO, 5 ADC channels, I2C, SPI and two UARTs; USB-C supports development and the board includes battery charging. It fits compact sensors, controllers and wireless prototypes. Use ESP32-C5 software support and verify antenna, power and pin requirements for the intended application.

Specifications

ESP32-C5 · Single-core RISC-V up to 240 MHz · Wi-Fi 6 dual-band 2.4/5 GHz · BLE 5 · 8 MB PSRAM + 8 MB flash · 11 GPIO / 5 ADC

SoC

Espressif ESP32-C5

CPU

Single-core RISC-V, up to 240 MHz

RAM

384 KB SRAM + 8 MB PSRAM

Flash

320 KB ROM + 8 MB flash

Wireless

Dual-band 2.4/5 GHz Wi-Fi 6; Bluetooth LE 5

I/O

11 GPIO / 5 ADC

Interfaces

I2C, SPI, 2 × UART

USB

USB-C; battery charging

Use ESP32-C5 compatible SDK/tooling and the board pinout. Confirm regional 5 GHz Wi-Fi rules and 3.3 V peripheral compatibility.

One XIAO ESP32-C5 board (SKU 100010048). Headers, cable and battery are not confirmed; check the seller packing list.

Out of stock
