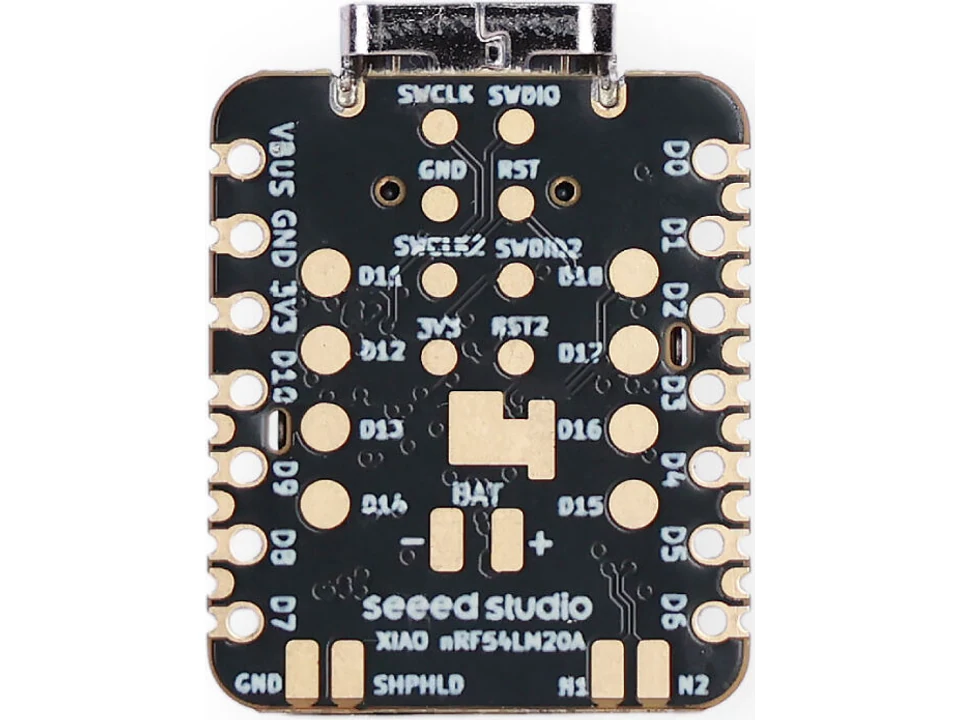

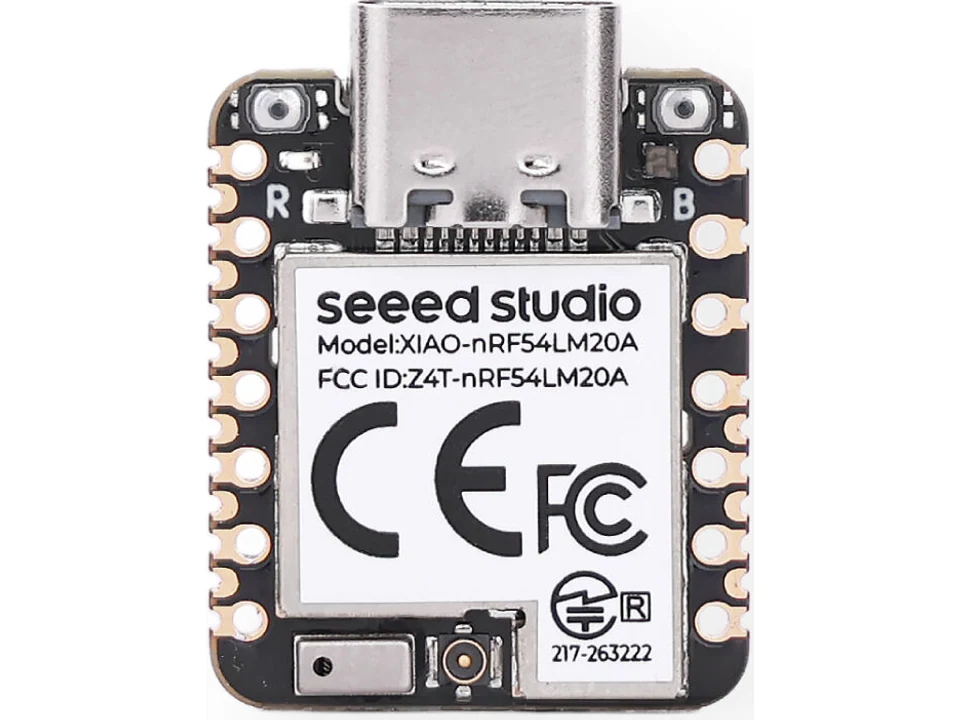

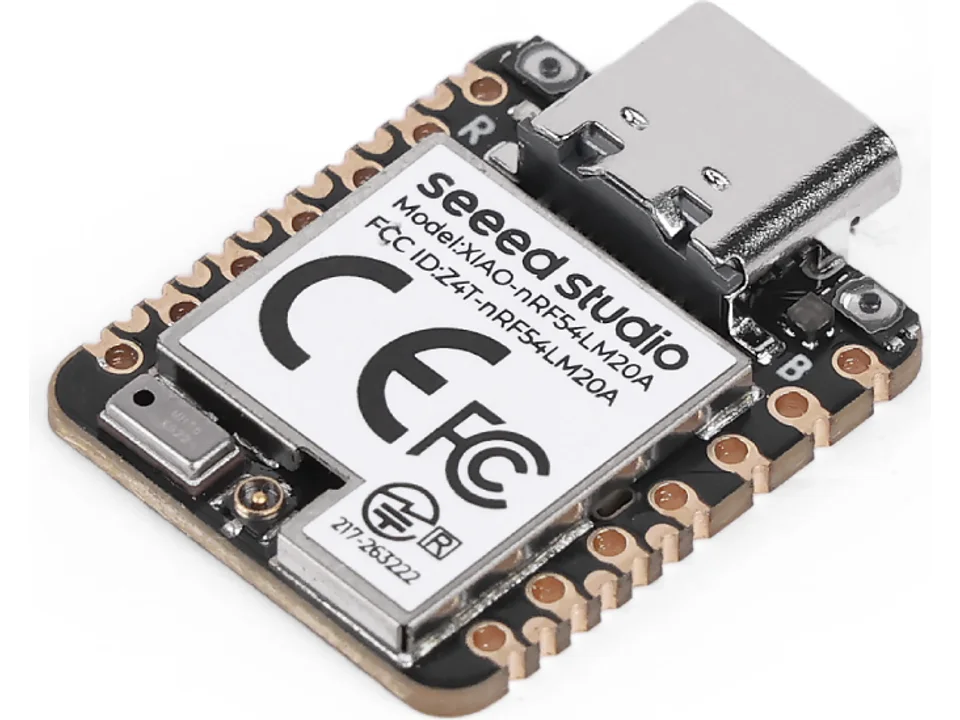

Seeed Studio XIAO nRF54LM20A Sense

Price on request

XIAO nRF54LM20A Sense combines Nordic's low-power nRF54LM20A platform with onboard motion and audio sensors for wearable, smart-sensing and edge-device prototypes. The 128 MHz Arm Cortex-M33 and 128 MHz RISC-V coprocessor share a system with 512 KB RAM, 2 MB non-volatile memory and 8 MB external flash. Bluetooth LE 6.0 with Channel Sounding, Bluetooth Mesh, Thread, Zigbee, Matter, NFC and other 2.4 GHz modes support multiprotocol designs. The Sense version adds an LSM6DS3TR-C six-axis IMU and PDM microphone; the board also provides 28 GPIO, nine analog pins, an IPEX antenna connector and nPM1300 power management with battery charging. It is suited to portable sensing, gesture/audio-aware interfaces and connected products. Use the nRF Connect SDK / Zephyr or documented PlatformIO path and validate sensor drivers, antenna and sleep-current conditions in the target build.

Specifications

Nordic nRF54LM20A · Cortex-M33 128 MHz + RISC-V 128 MHz · 512 KB RAM · 2 MB NVM + 8 MB external flash · BLE 6 / Thread / Zigbee / Matter · IMU + PDM microphone

SoC

Nordic nRF54LM20A

CPU

Arm Cortex-M33 128 MHz + RISC-V 128 MHz coprocessor

RAM

512 KB

NVM

2 MB

External flash

8 MB

Wireless

Bluetooth LE 6.0 / Channel Sounding, Mesh, Thread, Zigbee, Matter, NFC

Sensors

LSM6DS3TR-C 6-axis IMU; PDM microphone

I/O

28 GPIO; 9 analog

Power

nPM1300 PMIC; USB-C 5 V / 3.7 V battery

Nordic nRF Connect SDK / Zephyr or documented PlatformIO. Use Sense-specific IMU/microphone drivers and pinout; antenna and radio-stack setup affect wireless performance and current draw.

One XIAO nRF54LM20A Sense board (SKU 100018440). Verify headers, antenna accessories and cables with the supplier packing list.

Out of stock
