TI TPS7A02 3.3 V nanopower LDO · SOT-23-5

2,000 AMD

A fixed 3.3 V micropower LDO for battery-operated sensors and always-on control circuits where quiescent consumption matters. The exact TPS7A0233PDBVR variant is rated for 200 mA, accepts 1.5–6.0 V input, and draws 25 nA typical quiescent current; shutdown current is 3 nA typical. TI specifies up to 270 mV dropout at 200 mA for the 3.3 V output and requires at least 1 µF output capacitance for stability. This is the five-pin DBV SOT-23 version. Check pin assignment, capacitor behavior, thermal limits, and the TI recommended land pattern for your board. The image is a neutral package illustration, not an exact device photo.

Specifications

3.3 V fixed · 200 mA · VIN 1.5–6.0 V · 25 nA typical IQ · DBV SOT-23-5

Output

3.3 V fixed

Output current

200 mA maximum

Input range

1.5–6.0 V

Quiescent current

25 nA typical

Shutdown current

3 nA typical

Package

SOT-23-5 (TI DBV)

PCB footprint

Use TI DBV package drawing; confirm pinout and land pattern

Image note

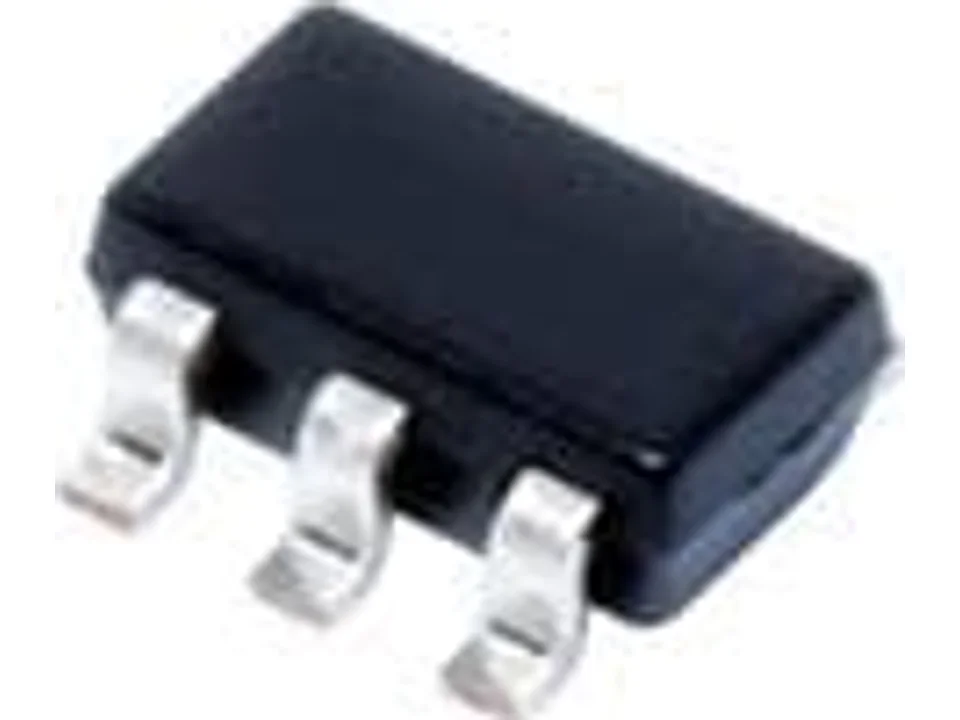

Distributor product photo; individual body markings may vary by production lot.
