YAGEO 1 kΩ resistor · 0805

1,200 AMD

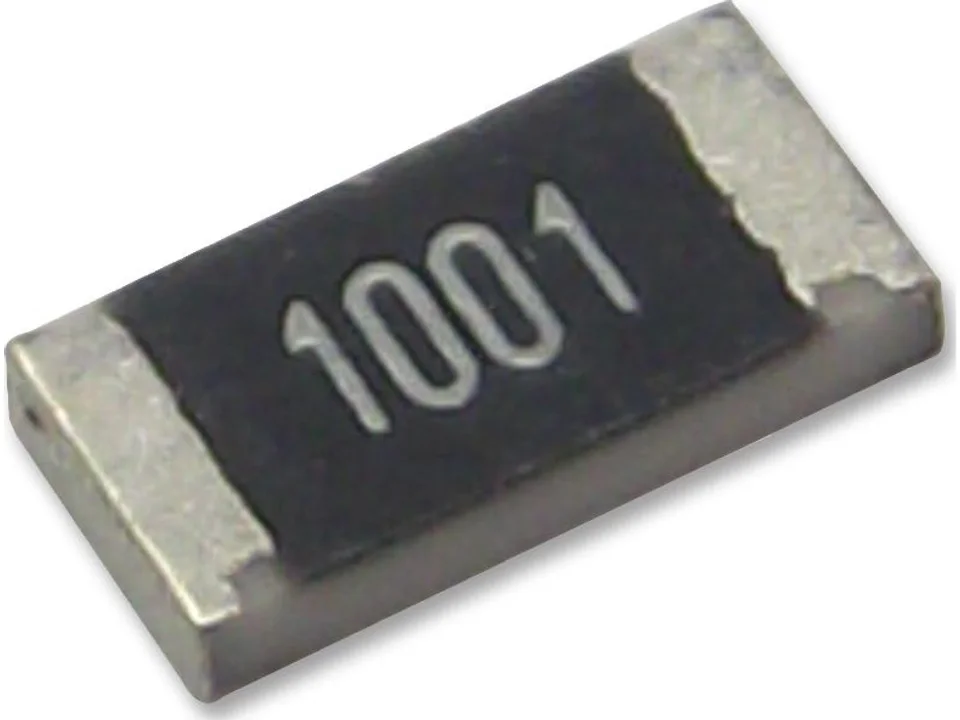

A standard-value 1 kΩ chip resistor for bias networks, pull-ups, indicator LEDs, and general signal work. YAGEO specifies a thick-film element, ±1% resistance tolerance, and 0.125 W rated power at 70°C. Its 0805 (2012 metric) footprint is a practical balance of compact board area and hand-solderability. The picture is a consistent unmarked package illustration rather than an exact-part photograph. Follow the datasheet land pattern and check dissipation and voltage limits in circuit.

Specifications

1 kΩ · ±1% · 0.125 W · thick film · 0805 / 2012 metric

Resistance

1 kΩ

Tolerance

±1%

Rated power

0.125 W at 70 °C

Technology

Thick film

Package / footprint

0805 / 2012 metric

Dimensions

2.0 × 1.25 mm body (nominal)

Image note

Distributor product photo; individual body markings may vary by production lot.

In stock
